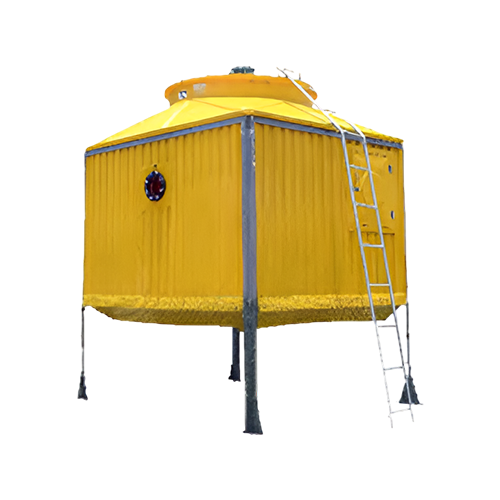

Square Cooling Tower
30000.0 INR/Piece
Product Details:
- Material FRP (Fiber Reinforced Plastic), SS304 hardware
- Refrigerating Capacity 40 - 750 TR
- Air Flow 7000 - 30000 m3/hr
- Application Industrial process cooling, HVAC, Power plants
- Motor 1.5 - 15 HP, TEFC, 3 Phase
- Condition New
- Type Induced Draft, Cross Flow, Square Shape
- Click to View more
X
Square Cooling Tower Price And Quantity
- 30000.0 INR/Piece
- 1 Piece
- Field Erected on RCC Platform
- Provided as per design
- Heavy Duty Galvanized Steel / SS Frame
- Up to 50°C
- PVC Sectionalized, High Efficiency
- PVC Honeycomb Fills, High Performance, UV Stabilized
- Protective Fan Guard, Access Ladder (optional)
- Blue / Light Grey (Custom Available)
- Top removable panel for easy maintenance
- Axial Flow, Corrosion Resistant with Aluminium or FRP Blades
- Bubble wrapped or wooden crating as required
- Flanged, Customizable Size
- Immediate on power-up
Square Cooling Tower Product Specifications
- 30 - 550 m3/hr
- 3 Phase, 50 Hz
- Not Applicable (used in closed-circuit type only)
- Variable based on capacity (Standard: 1200mm x 1200mm x 1700mm up to 2500mm x 2500mm x 2700mm)
- Not included (to be externally provided)
- ABS / Polypropylene or Brass
- Water Cooled, Induced Draft
- New
- FRP (Fiber Reinforced Plastic), SS304 hardware
- 380-440V
- 40 - 750 TR
- 7000 - 30000 m3/hr
- Not Applicable (Cooling towers utilize fans instead of compressors)
- Industrial process cooling, HVAC, Power plants
- Induced Draft, Cross Flow, Square Shape
- 95 dB(A) at 1m distance, Low Noise Fan available
- 1.5 - 15 HP, TEFC, 3 Phase
- Field Erected on RCC Platform
- Provided as per design
- Heavy Duty Galvanized Steel / SS Frame
- Up to 50°C
- PVC Sectionalized, High Efficiency
- PVC Honeycomb Fills, High Performance, UV Stabilized
- Protective Fan Guard, Access Ladder (optional)
- Blue / Light Grey (Custom Available)
- Top removable panel for easy maintenance
- Axial Flow, Corrosion Resistant with Aluminium or FRP Blades
- Bubble wrapped or wooden crating as required
- Flanged, Customizable Size
- Immediate on power-up
Square Cooling Tower Trade Information
- 1 Week
Product Description
SCT-HH Cooling Towers GEM Equipments
GEMs SCT-HH Cooling Towers are designed for high heat load applications where consistent performance, reliability, and efficiency are critical. Built with a robust FRP structure, these towers offer excellent resistance to corrosion and long service life, even in demanding industrial environments.
The advanced water distribution system ensures uniform flow over high-efficiency PVC fills, delivering effective heat transfer with minimal pressure drop. Energy-efficient induced draft axial fans and weatherproof motors provide stable airflow, low noise operation, and reduced power consumption.
Compact in design and easy to install, SCT-HH Cooling Towers require minimal maintenance and are ideal for continuous industrial cooling applications.
Reliable cooling. Engineered for high performance. Powered by GEM.
Corrosion-Resistant and Durable Construction
This cooling tower utilizes high-quality materials such as FRP for casing and SS304 hardware, complemented by a heavy-duty galvanized steel or stainless steel frame. The integration of corrosion-resistant and UV-stabilized components provides longevity even under challenging environmental conditions. Protective fan guards and optional access ladders bolster on-site safety for both installation and maintenance.
Efficient Heat Exchange and Noise Control
PVC honeycomb fills and sectionalized drift eliminators deliver high-efficiency heat transfer while minimizing water loss. The system operates at maximum 95 dB(A) at 1m with low-noise fan options available, making it suitable for noise-sensitive applications. The axial flow fan ensures optimal air and water flow for dependable cooling in capacities from 40 to 750 TR.
Customizable Solutions for Varied Applications
Suitable for a wide spectrum of requirements, the tower's size, color, and inlet/outlet flange configurations are customizable. It meets the demanding needs of industrial process cooling, HVAC, and power plant operations, with water flow rates ranging from 30 to 550 m3/hr. The structure supports easy field erection on RCC platforms, and optional packaging ensures safe transit and installation.
FAQ's of Square Cooling Tower:
Q: How is maintenance simplified for the Square Cooling Tower?
A: Maintenance is streamlined thanks to a top removable panel, granting straightforward access to the fan, fill packs, and drift eliminators. This design significantly reduces downtime and allows for easy cleaning or replacement of internal parts.Q: What are the benefits of using PVC honeycomb fills in this cooling tower?
A: PVC honeycomb fills provide a large surface area for water and air interaction, enhancing heat exchange efficiency and ensuring consistent cooling performance, even under high-temperature conditions.Q: When and where is this cooling tower typically used?
A: This cooling tower is ideal for industrial process cooling, HVAC systems, and power plants, particularly in environments demanding robust, high-capacity cooling. Its corrosion-resistant design ensures reliability in varied climates up to 50C ambient temperature.Q: What customization options are available for this cooling tower?
A: The tower can be tailored in terms of size, color (blue, light grey, or custom), flange sizes for inlet/outlet, and packaging (bubble wrapped or wooden crate) to suit unique project requirements and installation sites.Q: How does the axial flow fan contribute to performance and energy savings?
A: The axial flow fan, made with corrosion-resistant blades, delivers high air volume at efficient energy consumption, maximizing cooling efficiency while maintaining operational costs. Low-noise models are available for sensitive environments.Q: What are the safety features incorporated in this cooling tower?
A: Safety is enhanced with a protective fan guard to prevent accidental contact and an optional access ladder for secure maintenance access, ensuring compliance with industrial safety standards.Tell us about your requirement
