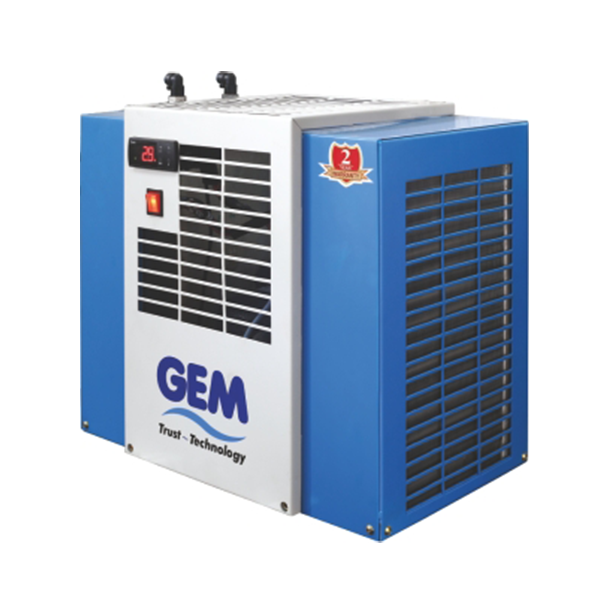

Wall Mounting Compressed Air Dryer

Name: Wall Mounting Compressed Air Dryer
Brand: GEM EQUIPMENTS (P) LTD
Price: 30000.0 INR
Availability: InStock

30000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Consumption 0.15 kW
Drive Direct Drive
Power Mode Continuous
Power Output Compressed Air, Dew Point -20C
Pressure 7 - 12 bar
Power Input AC
Inlet Temperature 50C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wall Mounting Compressed Air Dryer Price And Quantity

Minimum Order Quantity 1 Piece
Price 30000.0 INR/Unit

Refrigerant Type R134a
Housing Material Steel with Powder Coating
Application Industrial and Workshop Compressed Air Drying
Cycle Indicator LED Status Indicator
Weight Approx. 16 kg
Connection Size 1/2'' BSP
Mounting Type Wall Mounted
Display Type Analog Pressure Gauge
Drying Method Refrigerated
Dew Point -20°C at Rated Conditions

Wall Mounting Compressed Air Dryer Product Specifications

Noise Level < 68 dB
Inlet Temperature 50C
Place of Origin India
Power Input AC
Inlet Oil Content 0.01 ppm
Temperature Ambient 5C - 45C
Power Source Electric
Air Flow 20 - 100 CFM (Varies by model)
Dimension (L*W*H) 350 x 190 x 400 mm
Drive Direct Drive
Lubrication Type Oil-Free
Voltage 220-240V
Power Consumption 0.15 kW
Pressure 7 - 12 bar
Power Mode Continuous
Power Output Compressed Air, Dew Point -20C

Refrigerant Type R134a
Housing Material Steel with Powder Coating
Application Industrial and Workshop Compressed Air Drying
Cycle Indicator LED Status Indicator
Weight Approx. 16 kg
Connection Size 1/2'' BSP
Mounting Type Wall Mounted
Display Type Analog Pressure Gauge
Drying Method Refrigerated
Dew Point -20°C at Rated Conditions

Wall Mounting Compressed Air Dryer Trade Information

Delivery Time 1 Week

Product Description

Wall Mounting Compressed Air Dryer GEM Equipments

GEMs Wall Mounting Compressed Air Dryer is a compact, space-saving solution designed for applications where floor space is limited. Easily mounted on the wall near the point of use, it delivers clean, dry compressed air by efficiently removing moistureprotecting tools, equipment, and end products.

Built with energy-efficient components and a robust industrial design, this dryer ensures reliable performance with low pressure drop and minimal maintenance. Ideal for small to medium air systems, workshops, CNC machines, laboratories, and automation setups.

Key Benefits:

Wall-mounted, space-saving design
Reliable moisture removal
Easy installation & operation
Low maintenance, long service life
Ideal for point-of-use applications

GEM Equipments Smart Air Drying, Wherever Space Matters.

Efficient Refrigerated Drying for Industrial Usages

This dryer uses R134a refrigerant and a refrigerated method to reduce moisture in compressed air, ensuring a low dew point of -20C. Robust and designed for intense use, it keeps machines running smoothly and improves the longevity of downstream equipment.

User-Friendly Features and Reliable Monitoring

Featuring an analog pressure gauge and LED status indicator, users can easily monitor system performance and operational status. Its direct drive and oil-free design promote low maintenance, while the powder-coated steel housing ensures longevity and corrosion resistance.

Flexible Installation and Wide Compatibility

Mount this compact air dryer on the wall for space-saving integration into your workshop or factory. With a 1/2 BSP connection and compatibility with various air flows (20-100 CFM), it's suitable for numerous industrial setups and applications.

FAQ's of Wall Mounting Compressed Air Dryer:

Q: How do I install the wall mounting compressed air dryer in my workshop?

A: To install the dryer, securely mount it on a stable wall near your compressed air supply, using the provided mounting hardware. Connect the 1/2 BSP inlet and outlet, ensure proper electrical supply (220-240V AC), and check that ambient temperature stays between 5C and 45C for optimal performance.

Q: What is the operating process of this refrigerated air dryer?

A: The refrigerated dryer uses R134a refrigerant to cool compressed air, causing moisture to condense and separate. The unit maintains a dew point as low as -20C, with an LED status indicator and analog gauge to monitor operation and system pressure easily.

Q: When should I use this air dryer in my compressed air system?

A: Use this dryer whenever your compressed air system requires consistent, dry air to prevent equipment corrosion, minimize downtime, and enhance efficiency-especially in applications with air flow up to 100 CFM and inlet pressures up to 12 bar.

Q: Where is the best location to install this wall mounted dryer?

A: Install the dryer close to your main compressed air source in a well-ventilated, dust-free area within the recommended ambient temperature range (5C-45C). Ensure that there's adequate clearance for airflow and maintenance access.

Q: What are the usage benefits of this compressed air dryer?

A: This air dryer delivers clean, dry, and oil-free air, which protects sensitive pneumatic equipment, reduces maintenance costs, and extends equipment life. Its wall-mounted, compact design also frees up floor space in tight industrial environments.

Q: How does the LED cycle indicator help in daily operation?

A: The LED status indicator provides real-time visual feedback on the dryer's operational status, allowing for immediate detection of faults or performance issues so you can address them promptly.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Compressed Air Dryer' category

Compressed Air Dryer Price : 50000.0 INR/Unit Minimum Order Quantity : 1 Power Input : Single Phase Inlet Temperature : 45C Max Place of Origin : India Noise Level : < 60 dB Dimension (L*W*H) : 700 x 400 x 800 mm Air Flow : 25 CFM Power Source : Electric Inlet Oil Content : less than 0.01 ppm Temperature : 210C Power Consumption : 0.37 kW Voltage : 220 V Lubrication Type : Oil Free Drive : Direct Power Mode : Other, Automatic Pressure : 7 Bar Power Output : 0.5 HP Fan Capacity : 3400 m3/h

Send Inquiry

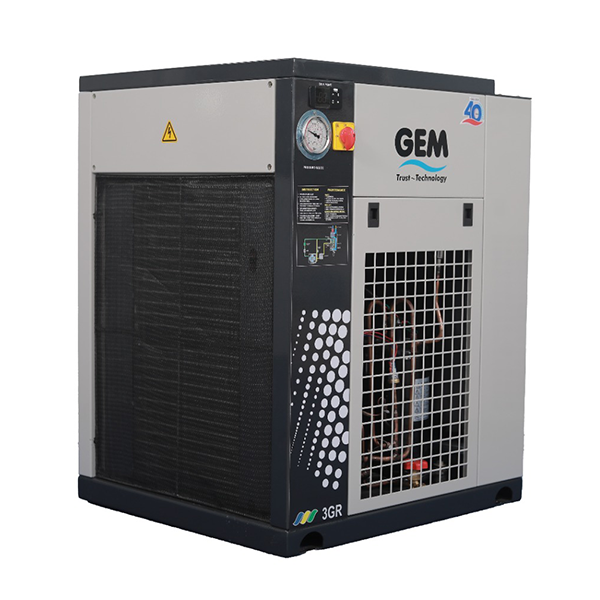

Refrigerated Air Dryers- 400 Cfm Price : 50000.0 INR/Unit Minimum Order Quantity : 1 Power Input : 230V AC Inlet Temperature : Maximum 60C Place of Origin : India Noise Level : Less than 70 dB Dimension (L*W*H) : 1200 mm x 800 mm x 1100 mm Air Flow : 400 CFM Power Source : Electric Inlet Oil Content : < 2 mg/m Temperature : Dew Point up to 3C Power Consumption : 2.7 kW Voltage : 230V / 1 Phase / 50 Hz Lubrication Type : Others, OilFree Operation Drive : Direct Drive Power Mode : Other, Continuous Pressure : 7 16 kg/cm (g) Power Output : Compressed Dry Air Fan Capacity : Industrial Grade Axial Fan

Send Inquiry

Refrigerated Dryer- 600 Cfm Price : 50000.0 INR/Unit Minimum Order Quantity : 1 Power Input : Single Phase AC Inlet Temperature : Maximum 45C Place of Origin : India Noise Level : <65 dB(A) Dimension (L*W*H) : 1200 mm x 700 mm x 1000 mm Air Flow : 600 CFM Power Source : Electric Inlet Oil Content : <0.03 mg/m Temperature : 2C to 8C (Dew Point) Power Consumption : 2.2 kW Voltage : 230 V Lubrication Type : Others, Oilfree Drive : Direct Power Mode : Other, Continuous Pressure : 16 bar max Power Output : 600 CFM of dry air Fan Capacity : 600 CFM

Send Inquiry

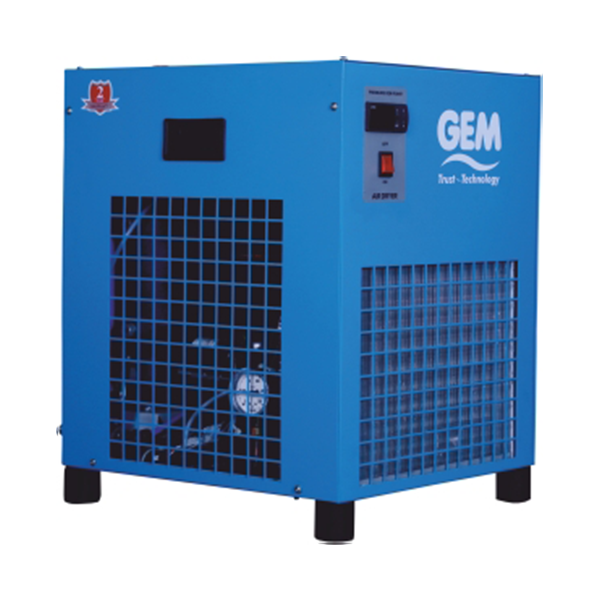

All Aluminium Compressed Air Dryer Price : 50000.0 INR/Unit Minimum Order Quantity : 1 Power Input : 230 V AC Inlet Temperature : Up to 60C Place of Origin : India Noise Level : < 60 dB Dimension (L*W*H) : Varies by model; typically compact Aluminium construction Air Flow : 10 to 2000 CFM (varies by model) Power Source : Electric Inlet Oil Content : < 0.01 ppm Temperature : 2C to 45C (Operating) Power Consumption : 0.3 to 3 kW Voltage : 230 V Lubrication Type : Others, OilFree Drive : Direct Power Mode : Other, Single Phase / Three Phase (as per model) Pressure : 7 to 16 bar Power Output : Compressed Air (Dry)
